HG.SN three screw pump,مضخات حلزونية-مجموعة خوانغ قونغ للالات. الصين
المنتوجات

HG.SN three screw pump

  • فئة المنتج : مضخات حلزونية
  • معايير المنتج :
  • مادة المنتج :
  • التاريخ : 2013 / سبتمبر / 09
  • عدد الاراء : 636
  • الميزة الأساسية

    ① Screw pump has constant capability and pressure, smooth running, small vibration and low noise.
    ② Screw pump has a very high suction capability, It needn tbotoom valve and it needn toften breathe into oil before working.
    ③ Screw pump has high efficiency long life.
    ④ The unit assembly system every pump can be supplied as cartrdge pump for foo-, flange or wall mounting, in pedestal-bracket-or flange design.

  • واحد

    For the handing of oil and medium with lubricating properties. As various mineral oil, animal and vegetable oil, fuel oil and various heavy oil, diesel oil, animal and vegetable oil, fuel oil and var-ious heavy oil, diesel oil etc.

  • تطبيق

    ① In heating techniqzzues as fuel oil injecion, fuel supply and transfer pumps.
    ② In the engineering industry as hydraulic-, and telemotor pumps.
    ③ In the chemical and food industry as cargo-, transfer or supl-ply pumps.
    ④ In the marine field as transfer-, booster-, fuel oil pumps as well for ship hydraulics.

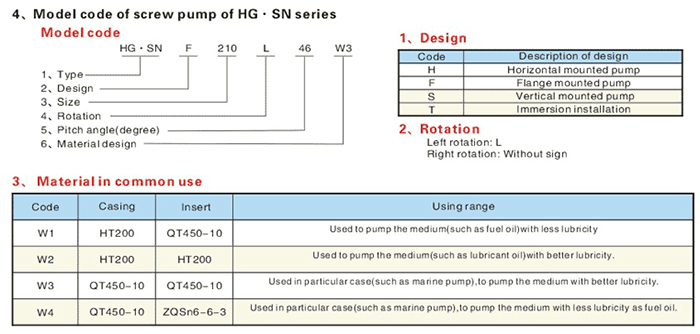

  • سلسلة HG من SN ثلاثة المسمار نوع المضخة



  • التجميع من السلطة

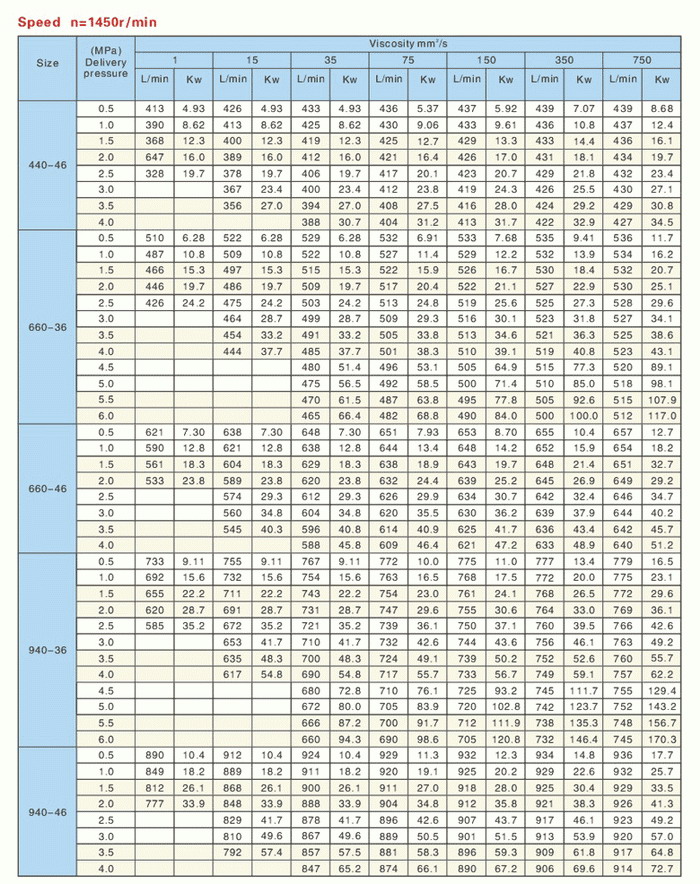

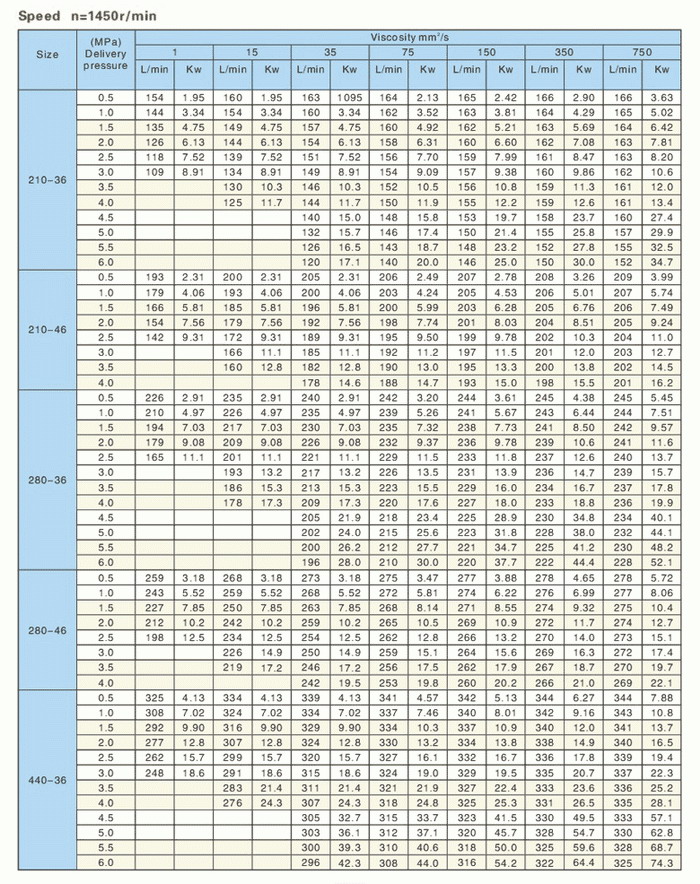

  • N=1450r/Min

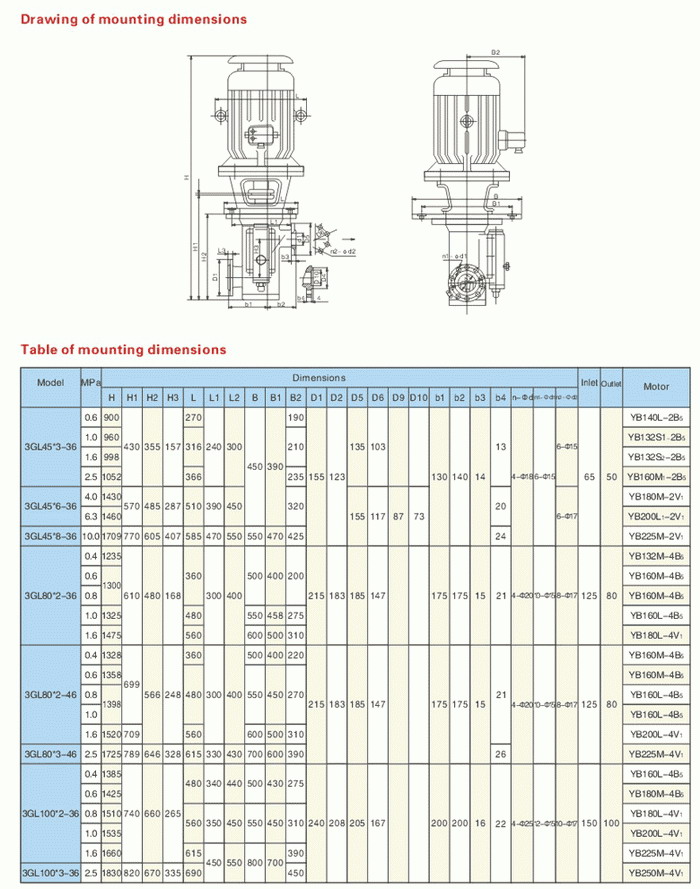

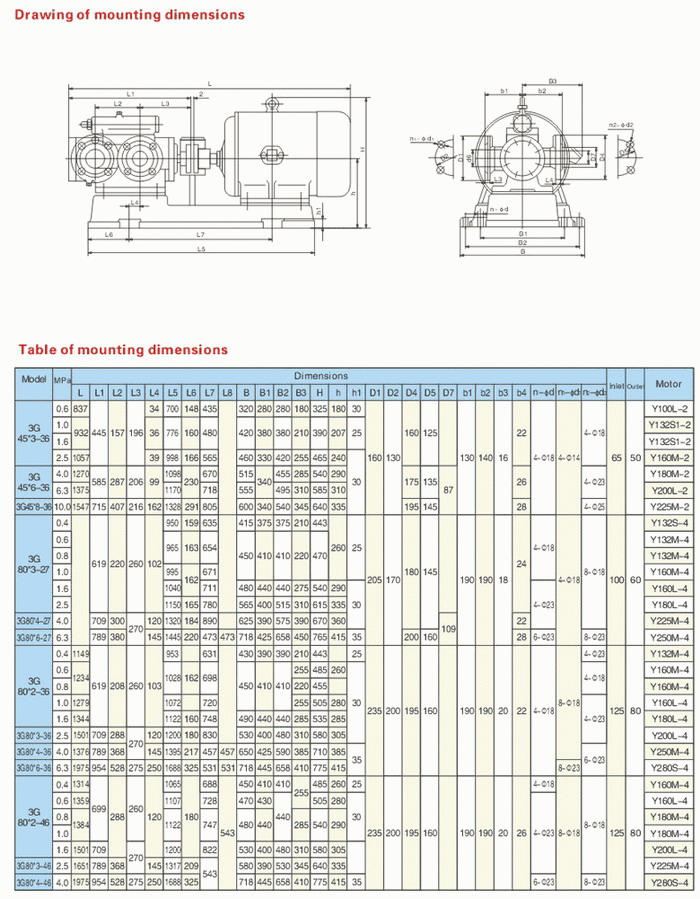

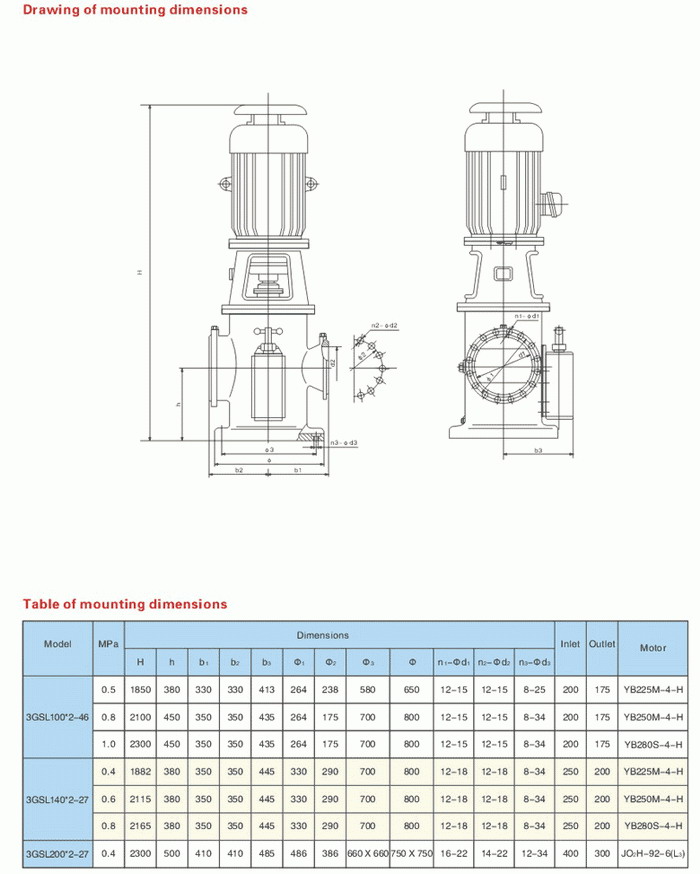

  • رسم من أبعاد التركيب

  • تزويد التاريخ في ترتيب
